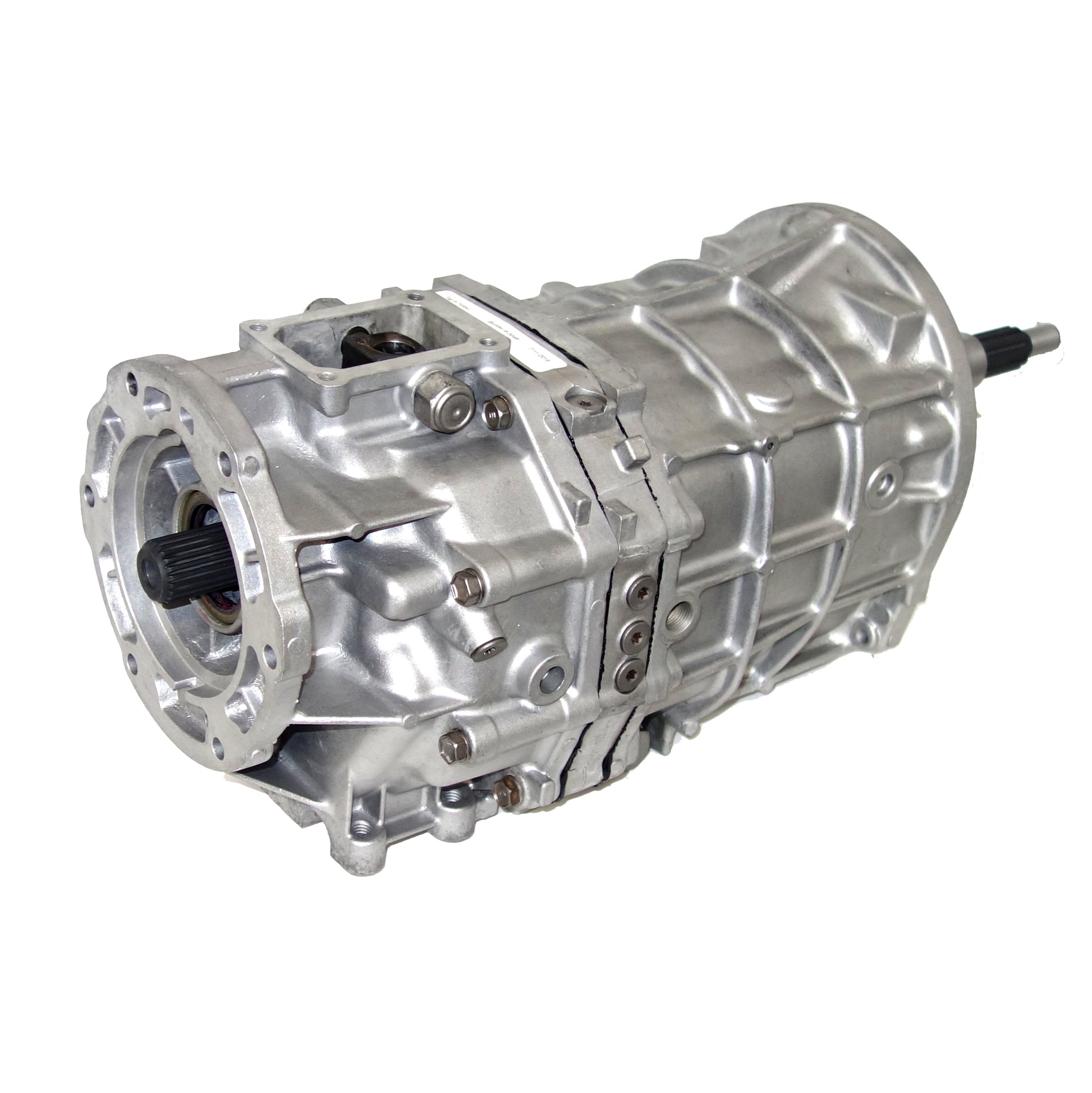

AX-15 Manual Transmission

AX-15 Manual Transmission

Jeep Wrangler Manual Transmission

Rebuilt AX-15 Jeep Manual Transmission will work like new and save you a ton of money! Guaranteed not to leak, squeak, moan, groan, rust, dust, or bust.

Call us for AX-15 pricing and warranty options.

Call 901-278-0090 to Order

Call Now View full details
  • Which Jeeps Do The Ax-15 Manual Transmission Fit?

    The 5-speed AX-15 manual transmission was standard in Jeep Wranglers with the 4.0L six-cylinder motor from 1990 - 1999. The 1990 Jeep Wrangler with the 4.2L six-cylinder motor also came standard with the AX-15 manual transmission.

  • Identification

    The easiest way to identify an AX-15 manual transmission is to notice the casing is made entirely out of Aluminum. The AX-15 only mounts to a 6-cylinder motor. The AX-15 manual transmission has a 10-spline input shaft and a 23-spline output shaft.

  • Gear Ratios

    (First-Fifth): (3.83, 2.33, 1.44, 1.00, 0.79)

AX-15 Manual Transmission Fluid Type

SAE30 Non-synthetic Oil - 3.4 QTS

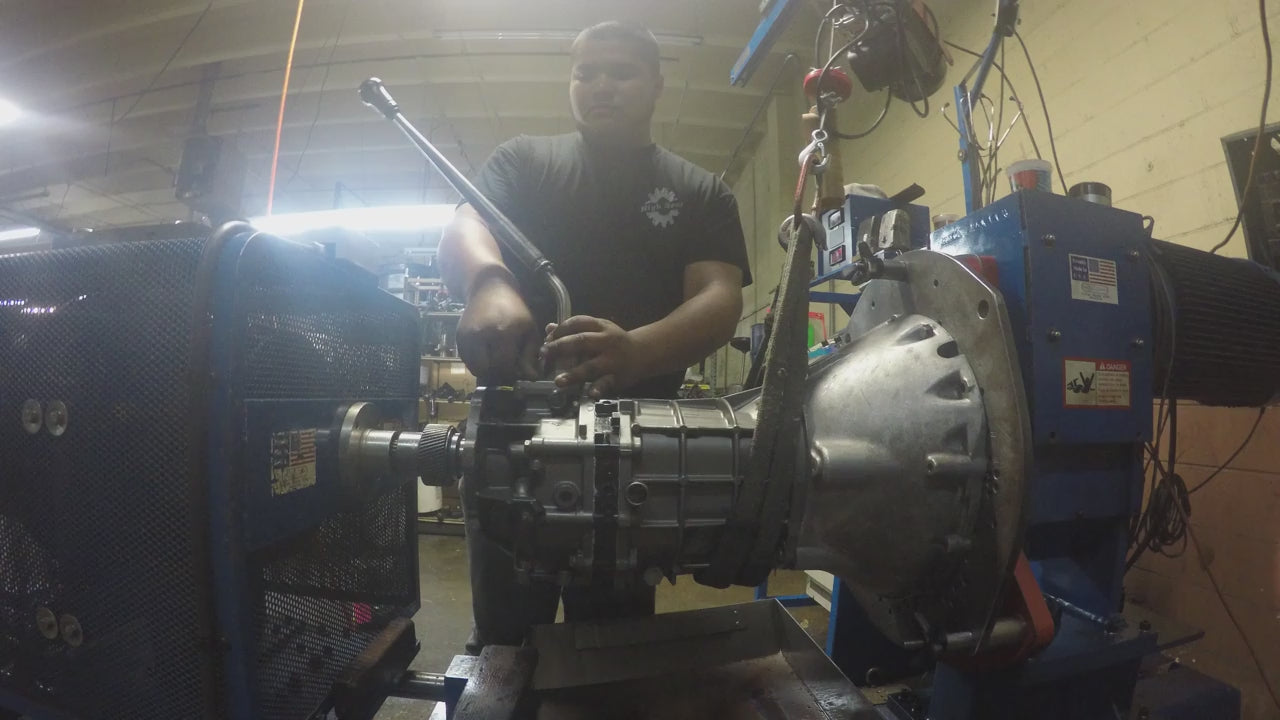

Ax-15 Transmission Dyno Test Video
