T-10 Manual Transmission

T-10 Manual Transmission

And Super T-10 Transmissions

The High Gear T-10 Manual Transmission will work like new and save you a ton of money! Guaranteed not to leak, squeak, moan, or groan.

Call 901-278-0090 to Order

Call Now View full details

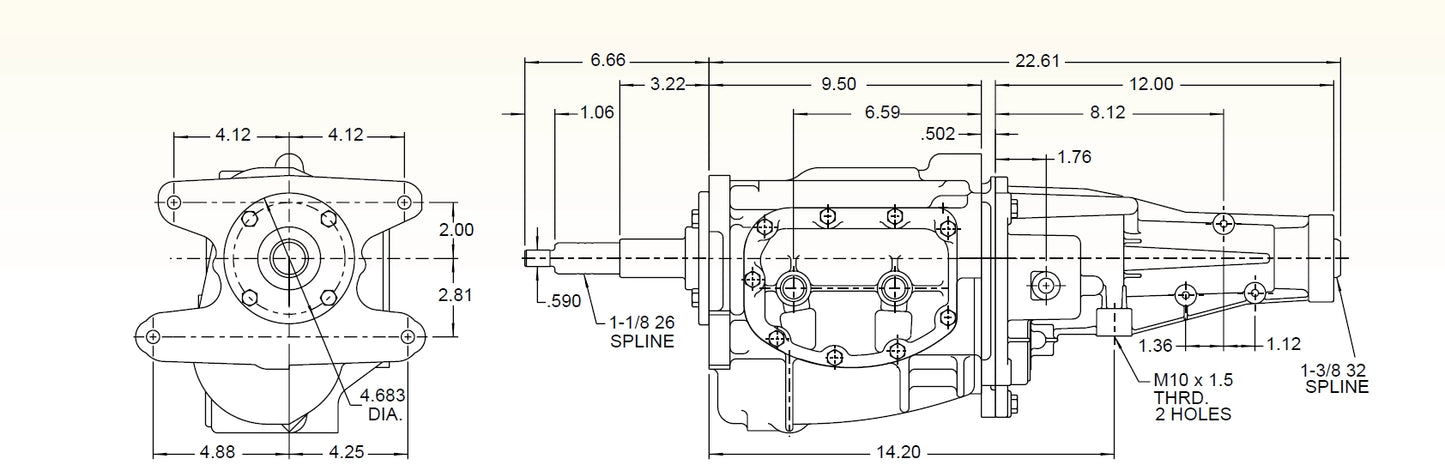

  • Specifications

    • Center Distance 3.25 Inches
    • Oil Capacity 2.4 U.S Pints
    • Approximate Dry Weight 70 lbs
    • Case & Extension Housing Aluminum
    • Controls Side Lever

  • Information

    The High Gear Transmission, Super T-10 is a four-speed counter-shaft helical gear transmission synchronized in all forward gears. First and reverse are constant mesh to prevent gear clash. Strut-type synchronizers are provided for longer life and easier shifting. The T-10 is used in applications for performance-type automobiles and light trucks. The High Gear Transmission T-10 is the NASCAR standard.

T-10 Manual Transmission Fluid Type

30w Non-synthetic Motor Oil - 1.7 QTS

T-10 Transmission Dyno Test Video
