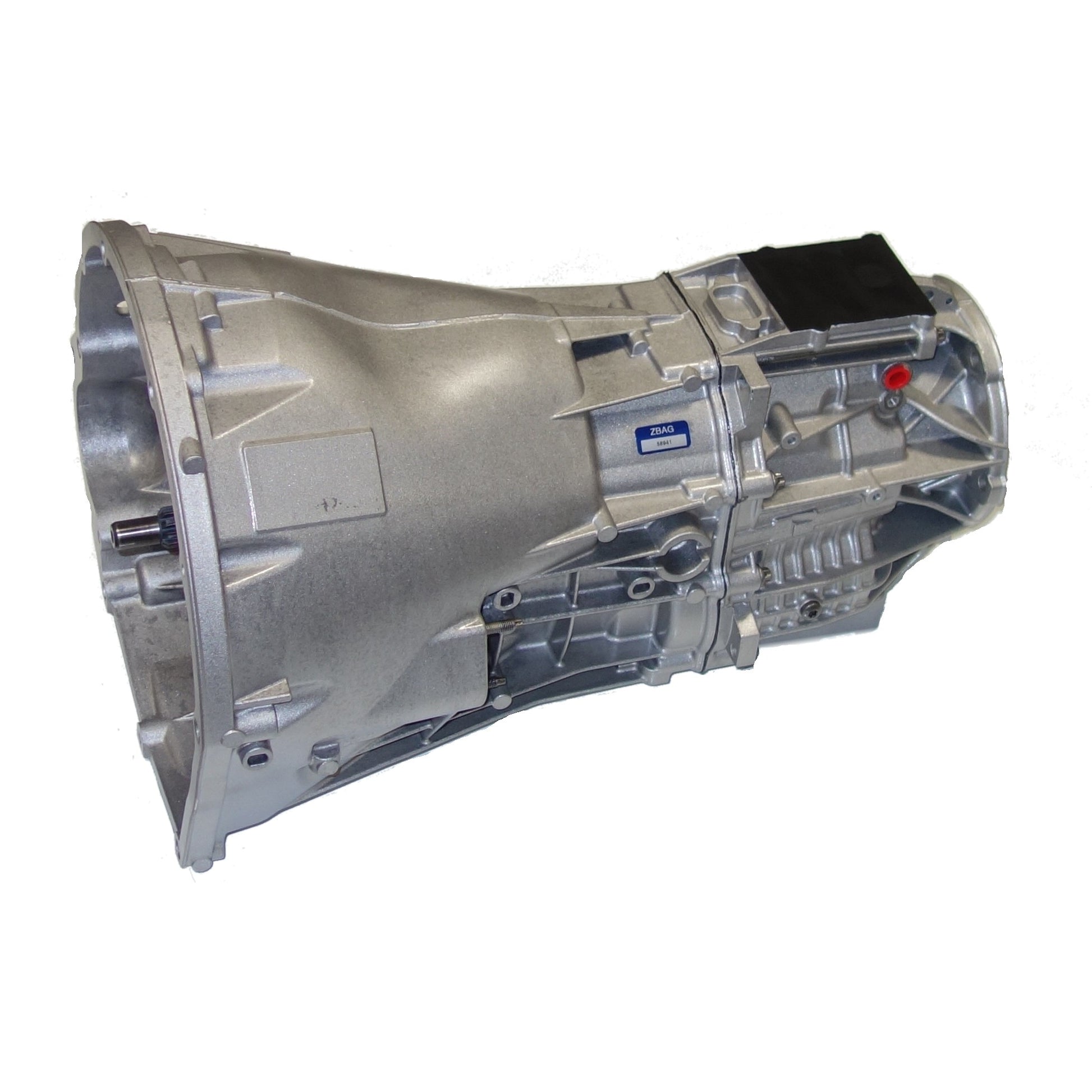

NSG-370 Manual Transmission

NSG-370 Manual Transmission


The NSG-370 is a top-shifting, longitudinally-loaded transmission. It features six speeds with a direct drive fifth gear and an overdriven sixth gear. The NSG-370 manual transmission is fully synchronized in all gears and has helically cut gears for all speeds.

Call us for NSG-370 pricing and warranty options.

Call 901-278-0090 to Order

Call Now View full details

  • Specifications

    • Make: Daimler
    • Length: 23.5" (I6), 24.8" (V6)
    • Height: 18"
    • Weight: 89 lbs.
    • Case: Cast aluminum
    • PTO Port: None
    • Mfg. Input Torque Rating: 272 ft. lbs.
    • Fluid Capacity: 3.75 pints / 1.9 quarts
    • Fill / Drain Plug: 14mm Allen / 17mm

  • Applications

    • 2005 - 2008 Jeep Liberty
    • 2005 - present Jeep Wrangler
    • 2004 - present Jeep Wrangler Rubicon
    • 2004 - 2006 Chrysler Crossfire
    • 2006 - 2008 Dodge Nitro

    And no, they will not interchange

  • Gear Ratios

    (First-Sixth): (4.46, 2.61, 1.72, 1.25, 1.00, 0.84), (R: 4.06)

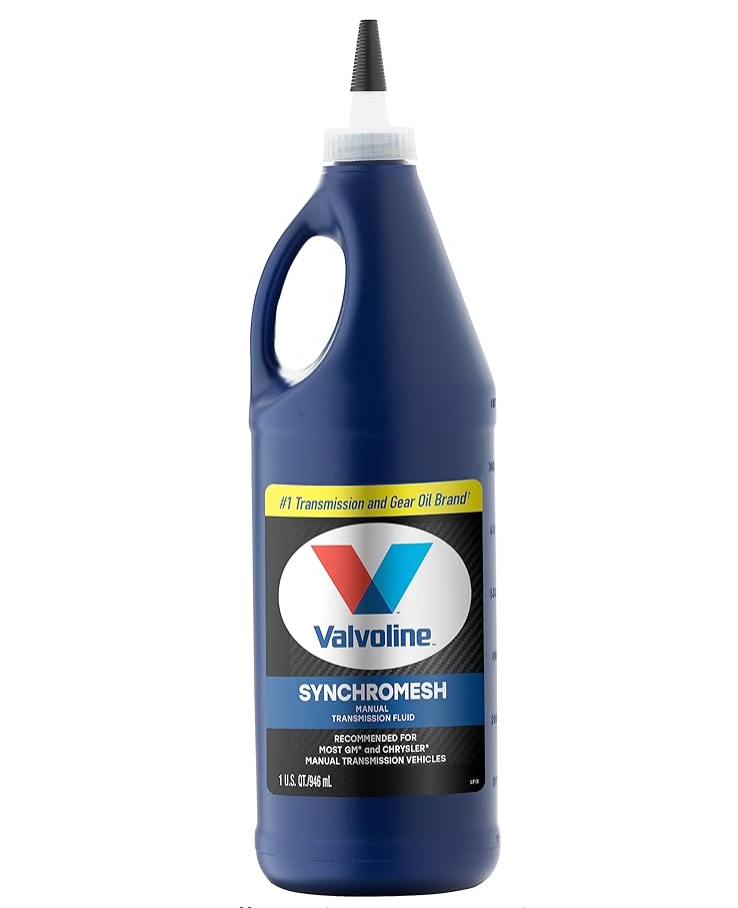

NSG-370 Manual Transmission Fluid Type

SYNCROMESH MS-9224

NSG-370 Dyno Test Video

NSG-370 Transmission Common Problems and Info Video
